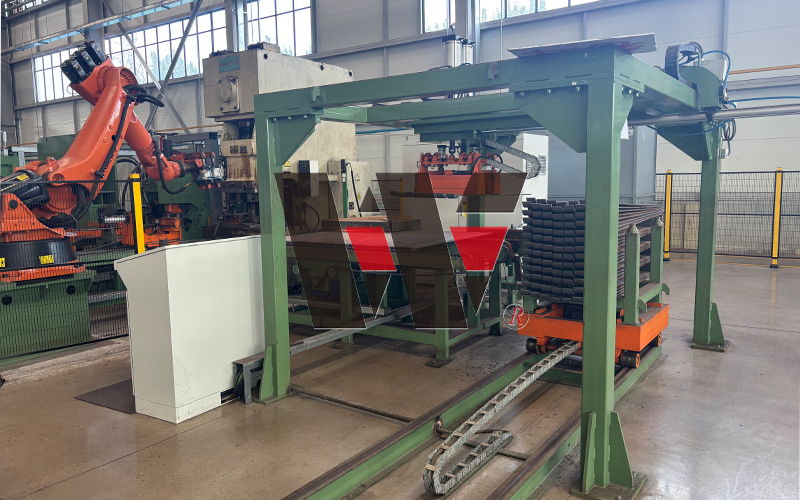

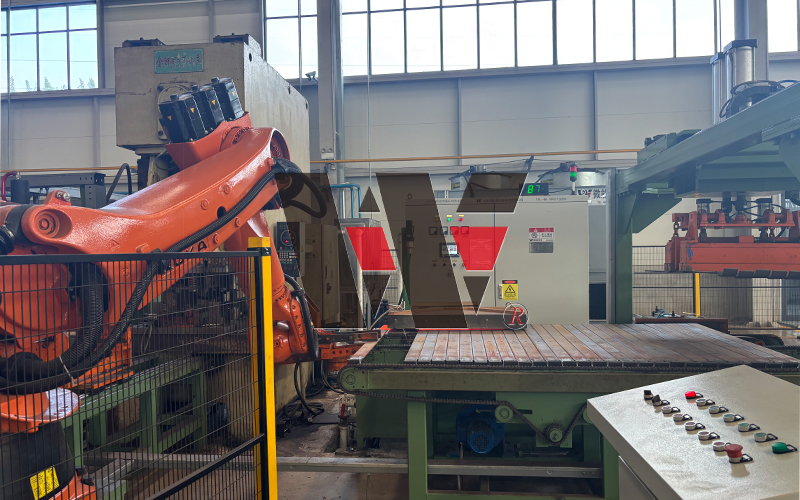

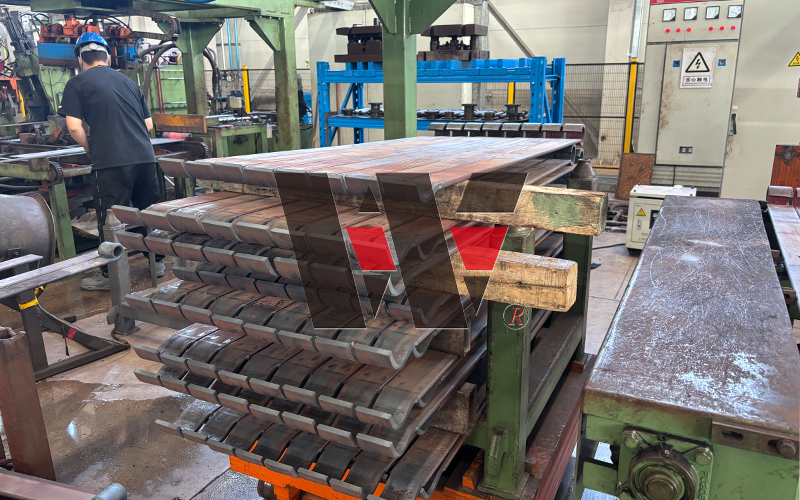

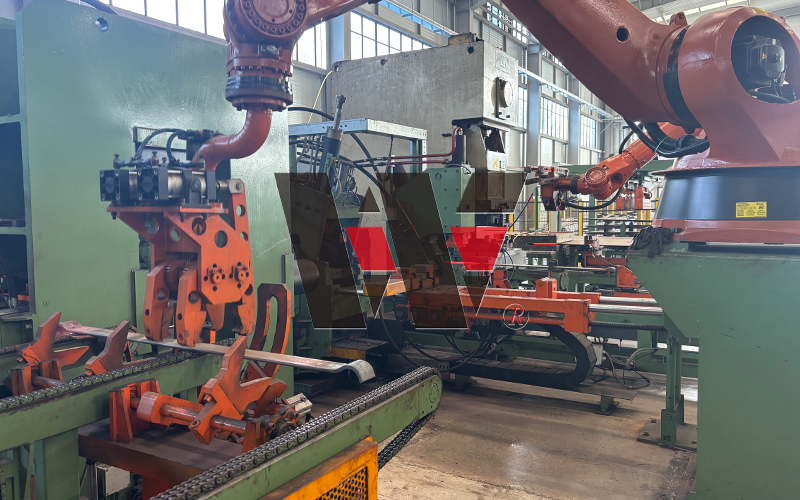

Fully Automatic Ear Wrapping Production Line
  • Fully Automatic Ear Wrapping Production Line
  • Fully Automatic Ear Wrapping Production Line
  • Fully Automatic Ear Wrapping Production Line
  • Fully Automatic Ear Wrapping Production Line

Fully Automatic Ear Wrapping Production Line

Multi-Process Integration: Specifically designed for the end processing of automotive leaf springs, this line can efficiently complete plain wrapping (1/4, 3/4), center wrapping, as well as plain and center curling.
The equipment features high rigidity and capacity, making it suitable for bracket ear production.
Superior Forming Precision: Utilizing crank-swing clamping heads and precision stroke pressing technology, the pressure plate adaptively adjusts to the leaf spring cross-section.
This ensures excellent ear shape, roundness, and gap quality, with inner diameter tolerances kept within 0.3mm.
High Automation and Intelligent Control: The system is powered by a Siemens PLC and an HMI touchscreen, supporting automatic positioning calculations and parameter setups.
The control cabinet includes meters with communication ports for seamless data collection, fault alarms, and maintenance management.
Integrated Precision Induction Heating: It integrates an efficient end induction heating system to maintain a stable steel heating temperature of 950±30°C or 975±25°C, ensuring optimal material plasticity for high-precision wrapping.
Efficient Continuous Operation: With a neat structural layout and a small footprint, the line is designed for continuous operation, capable of handling three-shift high-intensity production with an efficiency of 3-5 heads per minute.


Heating length of rolled ear 160mm
Maximum ear size 160mm
Maximum curl size 200mm-350mm
Steel plate rolling lug diameter maximum 60mm
Steel plate heating temperature 950±30
Heating width range Unlimited

Sensor Specifications

Heating thickness range

Heating length range

12-25mmL000

12-25mm

500-1000mm

25-40mm L1000

25-40mm

500-1000mm

18-35mm L1200

18-35mm

1200mm

35-56mm L1000

35-56mm

1000mm

36-45mm L600

36-45mm

600mm

42-62mm L500

42-62mm

500mm

Features:
1. Excellent overall machine adjustability; simple and easy mold replacement.
2. Precise range clamping; pressure plate adapts to the cross-sectional state of the leaf spring.
3. Crank swing clamping head ensures the shape, roundness, length, and ear gap of the coiled ear.
4. Automated control touch screen; automatic positioning calculation and customization available.
5. Integrated machine base; low power consumption, small footprint, and neat appearance.
