Leaf Spring Variable Cross-Section Rolling Mill

The variable cross-section rolling mill features a large, robust archway structure and an integrated base plate, ensuring exceptional equipment rigidity and high transmission precision while significantly reducing operational vibrations
Equipped with rollers featuring a 220mm body diameter, the machine offers a service life approximately 10% longer than domestic equivalents, complemented by various reliable jaw structures providing high clamping force for stable processing

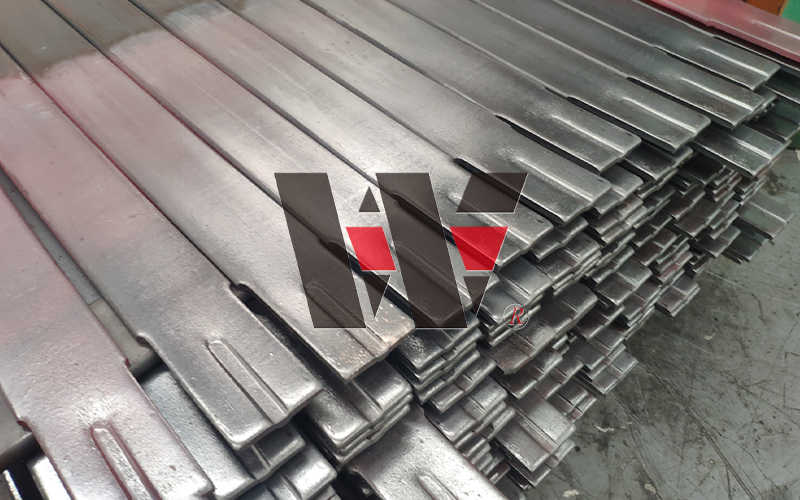

The equipment demonstrates superior processing versatility, supporting long cone lengths from 200mm to 1m (thickness 10mm–62mm) and short cones within 200mm, with no width restrictions on short cone processing
Available in 500KW and 650KW power configurations, the mill enables high-efficiency output across various specifications; for example, it can achieve a rapid production cycle of 22 seconds for 1670×800mm plates
Utilizing advanced cold-end positioning, the system allows for quick product variety changes by simply adjusting the rear positioning, and includes reserved interfaces for seamless integration into a fully automatic production line with customized auxiliary equipment
.


Long cone length range: 1m-200mm
Thickness range of long cone: 10mm-62mm
Steel plate short cone length: within 200mm
Steel plate heating temperature: 950±30℃
Short cone width range: unlimited
Short cone width range: unlimited
Single-sided opening, double-sided opening, annular opening, adjustable opening

Heating width

Heating thickness

Heating length

beat

Specification

power

beat

power

beat

60 MM

12-25 MM

from 500mm-1000mm

20sn

20*60*800

500KW

26

650KW

22S

70 MM

12-25 MM

from 500mm-1000mm

20sn

16*70*800

500KW

26S

650KW

22S

70 MM

25-40MM

from 500mm-1000mm

30sn

32*70*800

500KW

40S

650KW

31S

75 MM

40-62 MM

500mm

35sn

50*75*500

500KW

42S

650KW

32S

80MM

18-35 MM

from 500mm-1200mm

30sn

30*80*1000

500KW

54S

650KW

42S

80MM

35-55 MM

from 500mm-1100mm

35sn

50*80*1000

500KW

90s

650KW

70s

90MM

20-35 MM

from 500mm-1200mm

30sn

30*90*1000

500KW

60s

650KW

48S

90MM

35-55 MM

from 500mm-1000mm

35sn

50*90*800

500KW

80s

650KW

62S

100MM

18-35 MM

from 500mm-1200mm

35sn

30*100*1000

500KW

70s

650KW

53S

100MM

35-56 MM

from 500mm-1000mm

40sn

50*100*800

500KW

90s

650KW

70s

120MM

20-35 MM

from 500mm-800mm

40sn

30*120*700

500KW

58S

650KW

45S

120MM

36-45 MM

from 400mm-600mm

40sn

40*120*600

500KW

65S

650KW

52S




Features:
1. The main frame structure is large and robust, ensuring sufficient equipment rigidity.
2. The roll diameter is 220mm, and its service life will be 10% longer than that of similar domestic rolling mill rolls.
3. Multiple jaw structures provide strong clamping force; simple and reliable structure.
4. An integral base plate improves transmission accuracy and reduces vibration.
5. The equipment uses cold-end positioning; adjustments to the positioning are sufficient when product types change.
The range of auxiliary equipment is complete and the design is thoughtful. Users can freely choose the auxiliary equipment matching scheme according to different types of leaf springs. Interfaces can also be reserved to add auxiliary equipment when needed to form a diversified combination of automated production lines.
