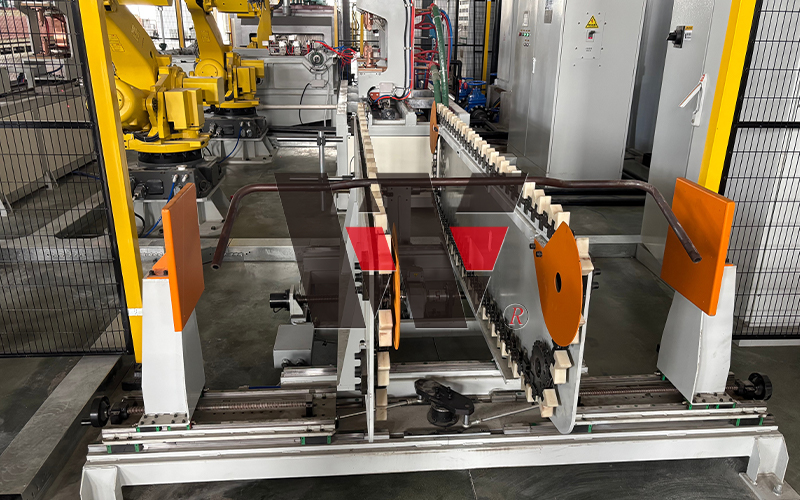

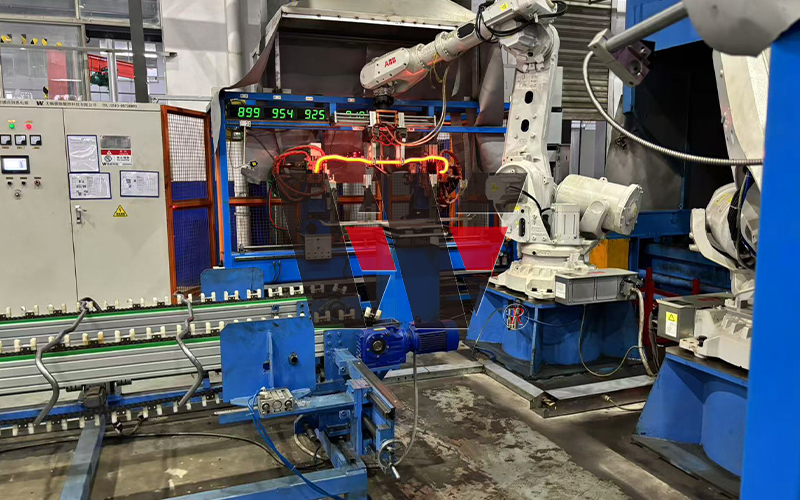

Hollow Rod Conduction Heating Production Line
  • Hollow Rod Conduction Heating Production Line
  • Hollow Rod Conduction Heating Production Line
  • Hollow Rod Conduction Heating Production Line

Hollow Rod Conduction Heating Production Line

The hollow rod conduction heating production line is designed for uniform full-body heating of hollow automotive stabilizer bar tubing, using conduction heating to achieve consistent through-heating of the entire tube length, preparing workpieces with stable, uniform temperature distribution for subsequent hot forming, bending, and heat treatment operations.
Unlike induction heating, the conduction method generates heat directly within the tube body by passing current through the workpiece itself or via thermal contact conduction. This approach delivers superior heating uniformity, making it particularly well-suited to thin-walled hollow tubing — effectively eliminating the surface overheating and inner-outer temperature differentials caused by the skin effect in induction heating, and ensuring temperature consistency across the full cross-section.
The line incorporates dedicated conduction heating equipment with precise control over current level and heating duration, combined with a closed-loop temperature monitoring system that tracks discharge temperature in real time, prevents overheating, and ensures highly consistent, repeatable process parameters across every production batch.
The equipment features a compact footprint and a high degree of overall automation, with closely coordinated workpiece transfer and heating sequences that minimize heat loss and maximize throughput. The absence of open flames or high-voltage hazards results in a clean and safe operating environment.
Energy efficiency is a key strength of this platform — power consumption is significantly lower than conventional gas or resistance heating methods, with high thermal efficiency delivering clear advantages in overall operating cost, particularly for continuous, high-volume production of multi-specification hollow stabilizer bars.
